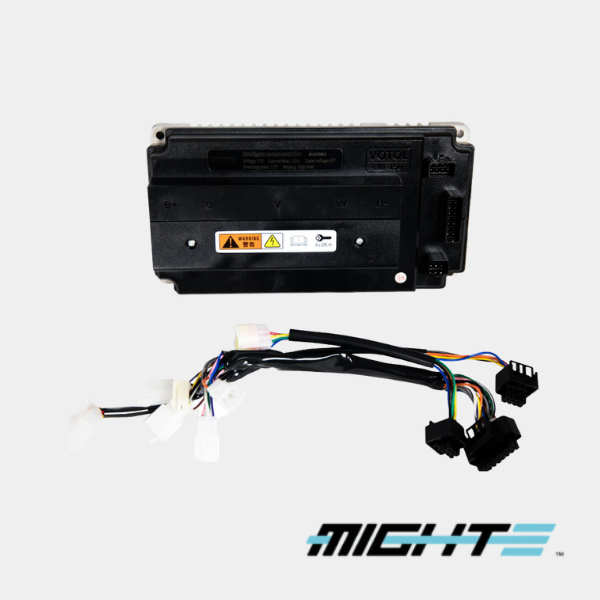

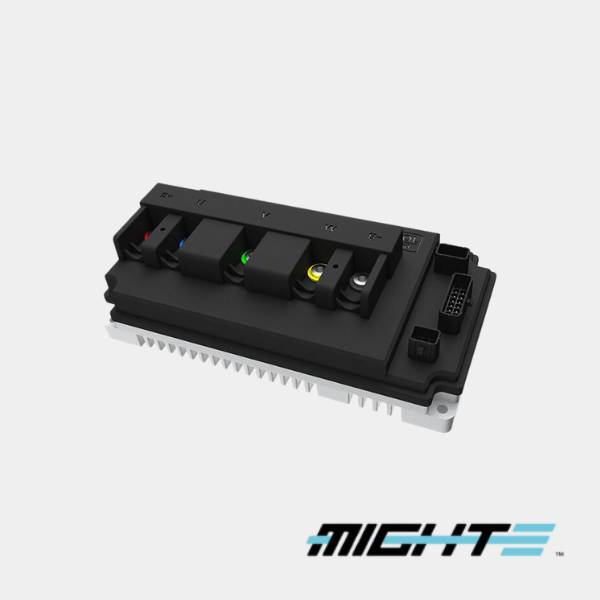

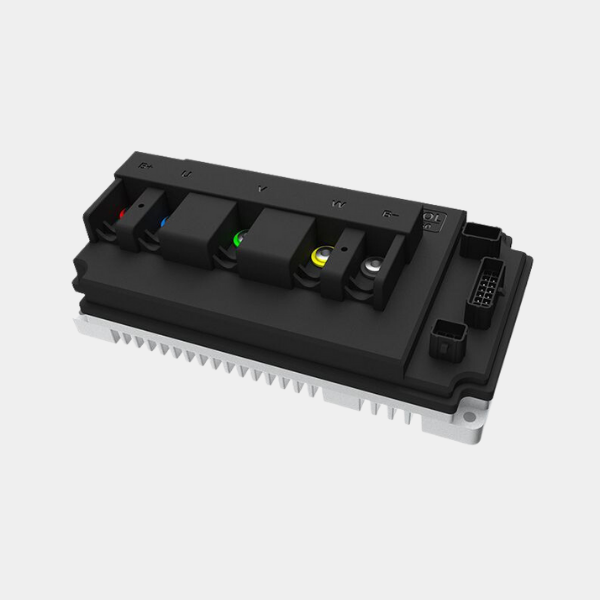

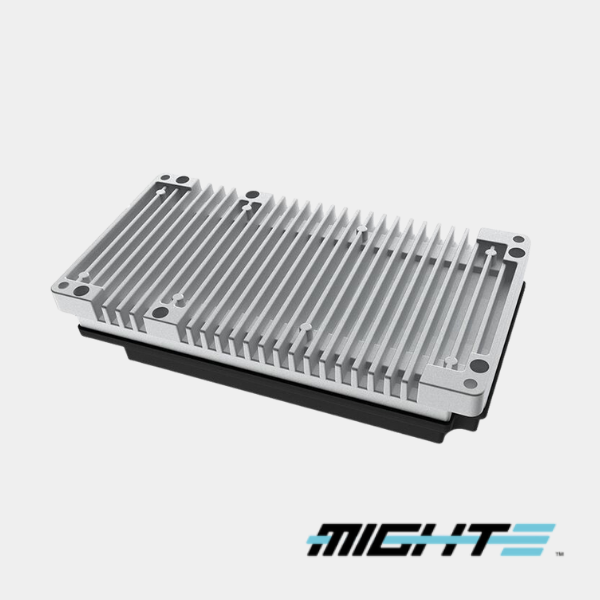

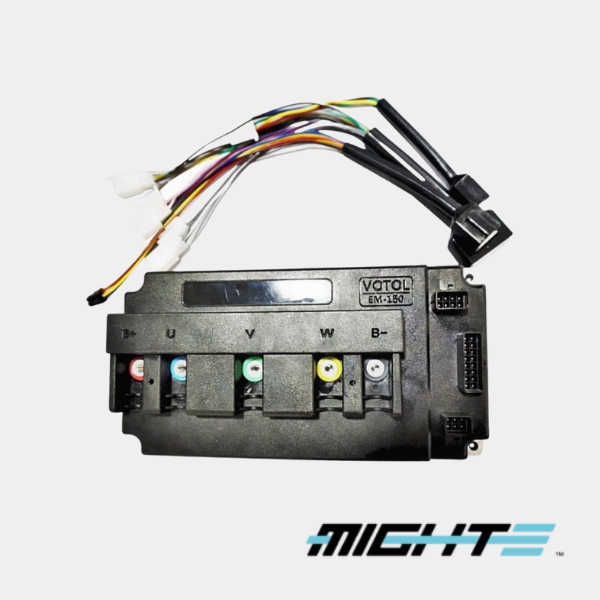

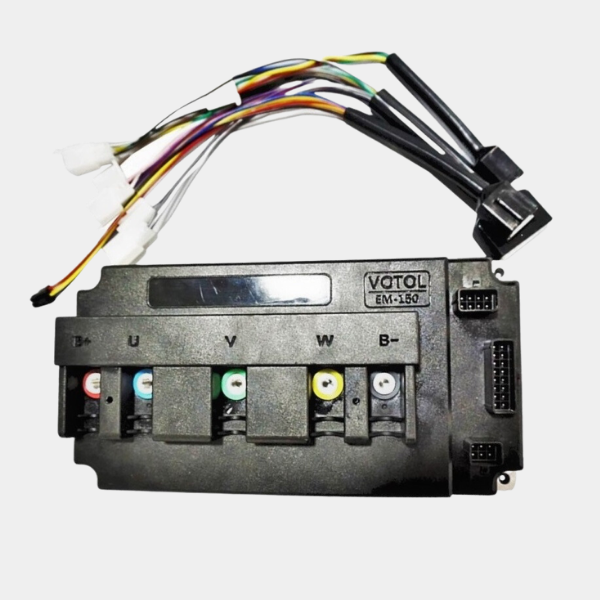

Votol EM-150

Regular price£330.00
/
Shipping calculated at checkout.
  • Low stock - 4 items left
  • Inventory on the way

Voltol EM-150 general operations step as,

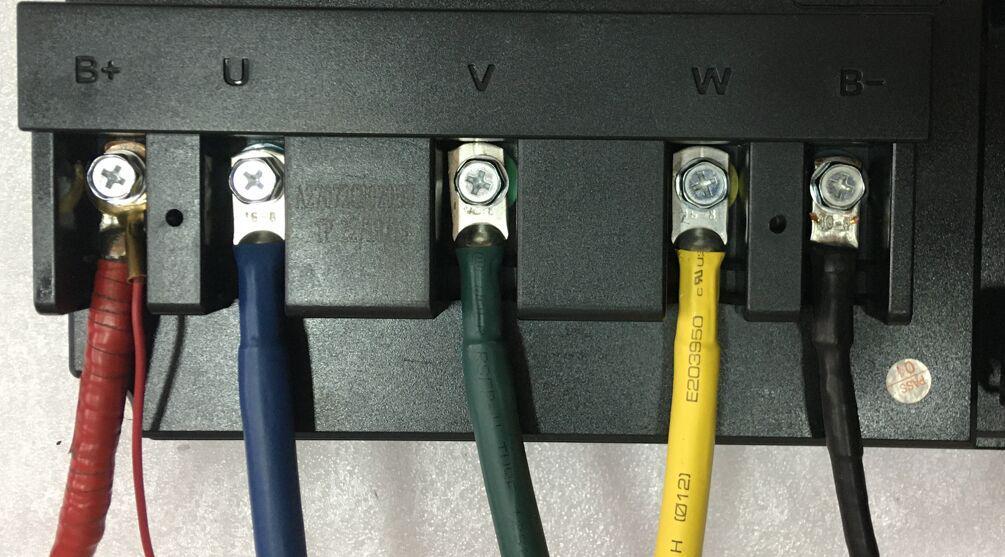

1) Please connect Motor phase cables to the Controller. The Controller B+ to Battery B+, Controller B- to Battery B-. Recommend Battery voltage 72V (full charged voltage no more than 84V).

2) Controller E-Lock Cable to Battery B+ (DC 72V). It is better to put a switch between E-Lock Cable and B+, then you can turn ON/OFF power easily, safe for the operations.

3) Hand Throttle to Controller throttle plug. The controller was programmed for the motor already, Please contact them in the correct way, and then we can run.

4) Take care of every step, separate all cables, and do not touch each other. Double-check the cable connection before you turn the ON power. Turn on the power and engage the throttle, the motor will run.

Important: Please do not change the settings of the controller when the motor is rotating (spinning/running). If you want to change settings, stop the motor fully, change the settings, and turn OFF all power. Then turn ON the power again, and run the motor.



Click Download below to download Voltol E-150 wiring Interface and diagrams:

Voltol e-150 controller download button






Specifications

Voltage 48V-72V (max. 90V)
Battery Current: 150A (peak)
Boost Current: 150A
Phase Current: 470A (peak)
Size:  245 x 129 x 69mm




Because we ship worldwide, shipping times and costs can vary, we will contact you if we have any questions in regards to completing your Shipment.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Superior Control Solution

Take charge with the Votol EM-150 Motor Controller, a powerful tool designed to bring superior control to your biking journey.

Precision Engineered

Engineered for excellence, the EM-150 offers exceptional motor operation, ensuring your bike performs at its best. It's crafted to handle a wide range of power outputs, catering to a variety of e-bikes.

Enhanced Experience

The Votol EM-150 lets you take control of your ride, allowing for fine-tuning of performance metrics to fit your biking needs, be it speed, torque, or efficiency.

Votol EM-150 - MightE

User-Oriented Design

As with all Votol controllers, the EM-150 offers easy installation and a straightforward user interface, ensuring a top-tier biking experience.
