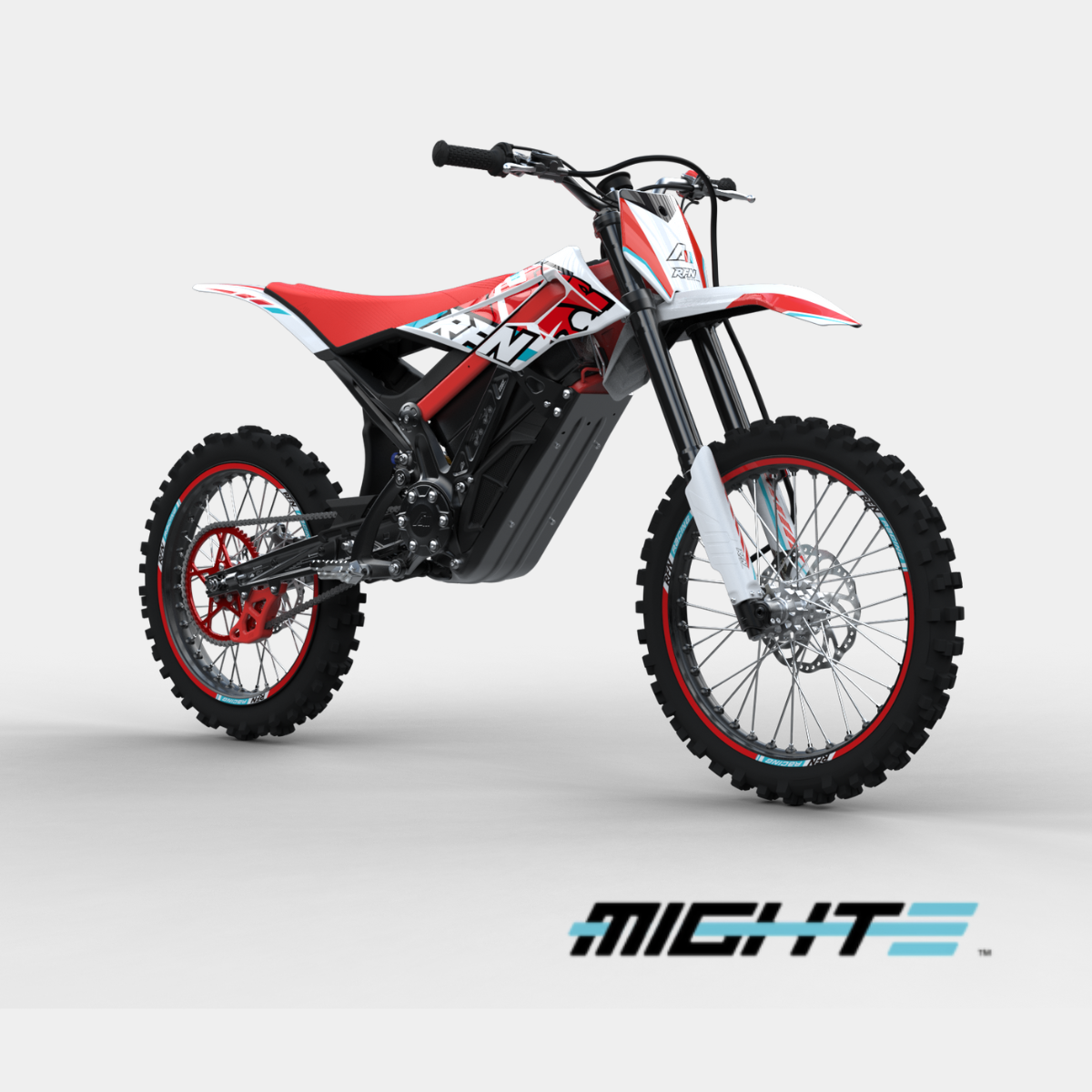

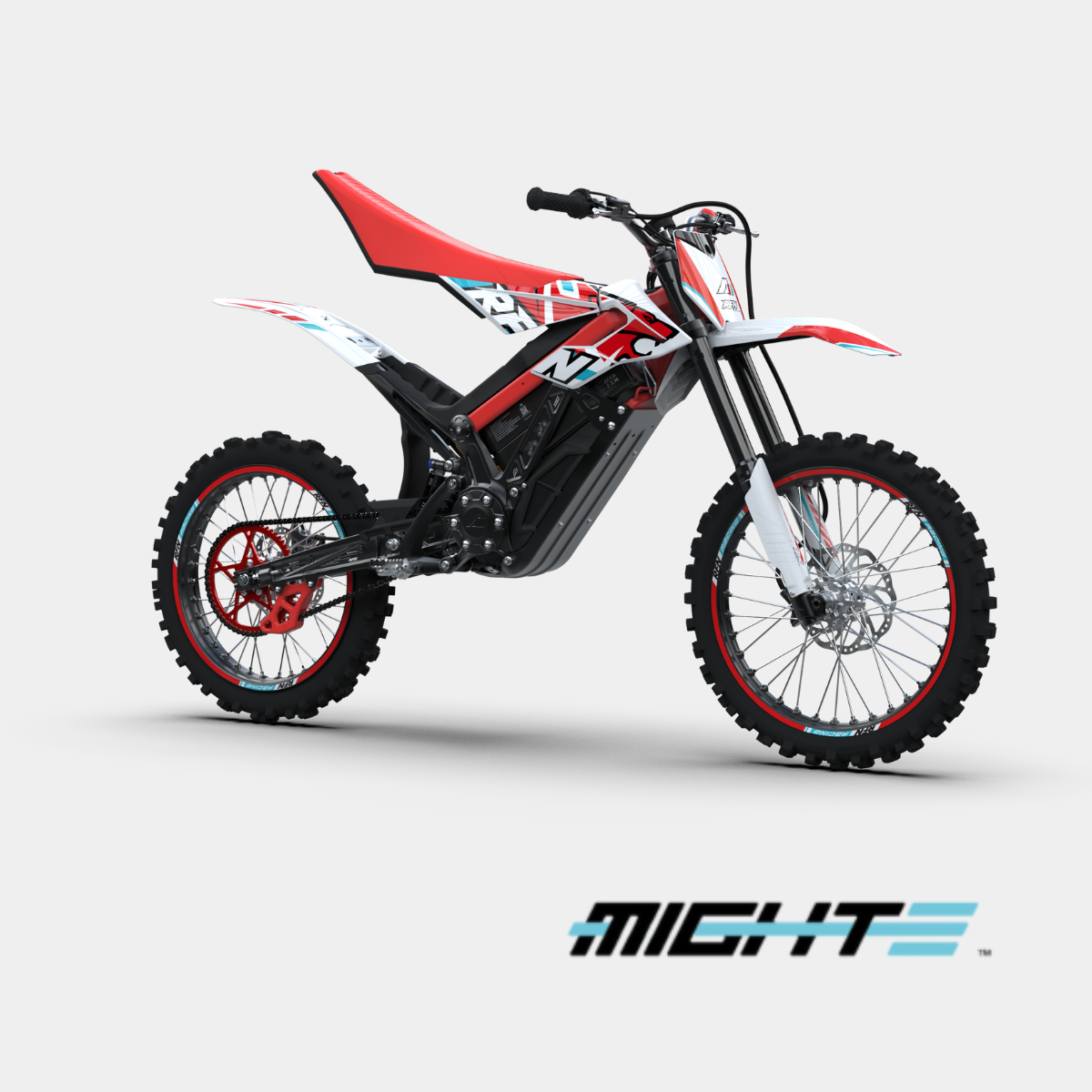

RFN Rally Pro MX (Off Road)

 Experience the power of new generation technology and unleash your adventurous spirit with the RFN Dual purpose Electric Dirt Bike

 RIDE MODES

Mode 1: Tortoise mode: The ultimate mode energy conservation exploration. Limited to 15 mph with 3.5 h battery range.

Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.

Mode 3: Rocket mode: Track and race mode, maximum torque and speed, riding time up to 1 h.

Mode 4: Reverse mode: Limited to 6 mph.

SPEED & RANGE
Range: 100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed: 55 mph (depending on gearing and conditions)

WEIGHT
Net weight of Battery: 15 kg
Net weight of the whole bike (Including Battery): 68 kg
Maximum load: 120 kg

WHEELS & TYRES
Hubs: Forged and CNC aluminium RFN hubs with 20 mm axle.
Rims: F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
Tyres: F CST CM721 70/100-19 off-road , R CST CM722 90/100-18 off-road

SPECIFICATIONS

• Battery: 74V / 2590 Kwh, LG Premium 21700 lithium cells, removable, can be charged in bike or separately.
• Brakes: Front and Rear 4-piston hydraulic disc, 210 mm
• Charging: 2-3 h with Quick charge Function
• Controller: Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
• Waterproof: IP67

DRIVETRAIN

• Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX
• Sprocket
• 13-58 T
• Rated power: 5 kW
• Peak power: 12.5 kW
• Max Torque of motor: 58 N.m
• Max Torque of rear wheel: 270 N.m

DIMENSIONS

•  Fork angle: 24 °
• Ground clearance: 340 mm
• Offset 15mm in triple clamps, 45 mm in forks.
• Seat height: 860 mm
• Trail: 111 mm
• Wheelbase: 1330 mm

BODYWORK

• Fenders & Bodywork: PP/ABS plastic
• Frame: 6082 aluminum extruded, forged, CNC machined and steel frame.
• Front Suspension: Upside Down, 200 mm travel, Fully adjustable
• Handlebar: High rise 6061 aluminum, 760 mm length
• Rear Suspension: Mono-Shock, 74 mm travel, adjustable
• Regulatory Certificate: CE

Warranty Terms - Chassis/Swing Arm/Motor /Controller 18 months (Battery up to 20,000 Miles) Non-Service Items 12 Months. Subject to the service schedule. Excludes items* *items subject to normal wear from use eg Grips, Cables, Belts, Tires, Pads & Discs, Bulbs, Warranty is excluded for competition or closed-circuit use. Any Accidental damage and or damage caused by alteration of the standard specification with nonofficial components (Tuning or modification) is entirely the owner’s responsibility. Warranty and service is a return to base criteria at the responsibility of the purchaser.

Service Intervals -

• First Service: 185 Miles (300 KM) or 3 months*
• Second Service: 620 miles (1000 KM) or 6 months*
• Third Service: 1240 Miles (2000 KM) or 12 months*
• Fourth Service: 1865 Miles (3000 KM) or 24 months*
• Fifth Service: 5th  Service 2485 miles (4000 KM) or 36 months*
• Then every 620 Miles (1000 KM) or 12 months*
• * Whichever comes first.
