NetGain Hyper 9 Motor & SME AC-X1 Controller Kit
The Hyper 9 is a 3 Phase AC, Synchronous Reluctance Internal Permanent Magnet (SRIPM) Motor, and it is powered/ Controlled by the SME Synchronous X1 Inverter.
The controller is a self-contained unit perfect for all conversions be it DIY or EV conversion shops. With it integrated software set up of the system to your specifications is very easy.
The NetGain Hyper 9 is the ideal power-train for any light to mid-weight Vehicles. You can combine multiple systems for heavy-weight and racing vehicles by linking one motor onto the other but this is a special order product.
Its Synchronous Reluctance Internal Permanent Magnet (SRIPM) platform delivers outstanding torque and efficiency, generating higher power per kg.
The Hyper 9 kit includes the following:
– 100V Brushless Hyper 9 Motor
– SME AC-X1 Controller / Inverter
– Low Voltage Wire Harness
– Main Contactor
Spec:
– 3 Phase SRIPM Motor and SME Controller/Inverter
– DC supply voltage from 62V to 130V, and current up to 750Amps max
– Brushless Motor
– Cage less Rotor – Higher Efficiency, Low Heat
– No Rotor Slip
– Up to 95% Efficiency!
– Higher torque than similar sized AC Induction motors
– Astounding performance in field weakening area with +50% power up to 5 times nominal speed
– Ultra compact controller
– Fully customisable controller I/O
– Extensive program customization from PC with Smart view Software
– Robust and Reliable
Motor Face: B-Face
Motor Diameter: 22.9 cm
Motor Case Length: 35 cm
Motor Shaft Length: 5.08 cm
Motor Shaft to End Length: 40 cm
Woodruff Key – 6,35 35mm Length.
B Face Bolts are 3/8-16 UNC
Motor Type: Permanent Magnet Synchronous Reluctance AC
Weight: 54.5 Kgs
Max Voltage Input: 132V DC
Terminal Stud Size: M8
Integrated Sensors: Encoder and Temperature
Rated Torque: 234.5 Nm
Rated Power: 120 HP
Max RPM: 8,000
RPM Sensor: Yes
Drive End Shaft: 28.575 mm with 6.35 mm Keyway
Max Efficiency: 0.94
Thermal Cooling: External Heatsink
Max Temperature: 150 Degrees Celsius
This kit has been ran on a demo vehicle and has less than 100 miles on the motor.
Also available with:
5 x Tesla modules for 120vdc 25kwh 100 miles of range.

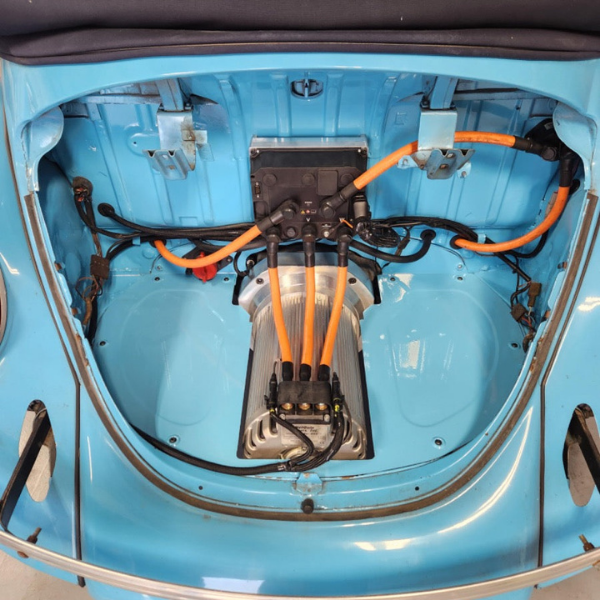

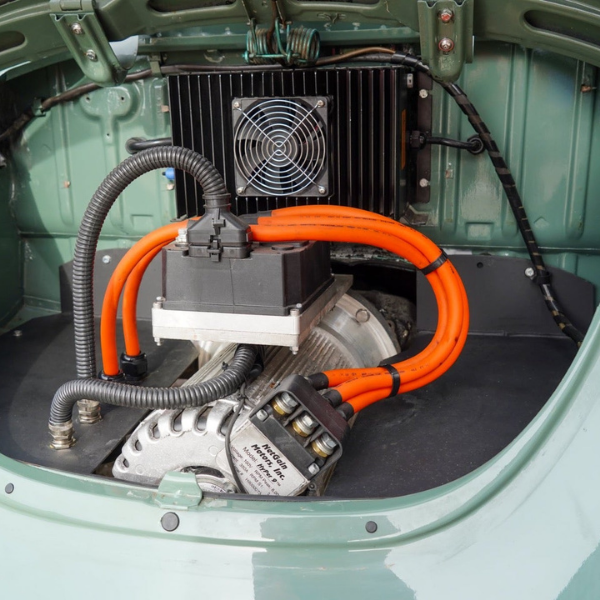

2 x Battery boxes to suit Vw beetle conversion
1 x EV West VW Air Cooled Billet Aluminum Transmission Adapter.
