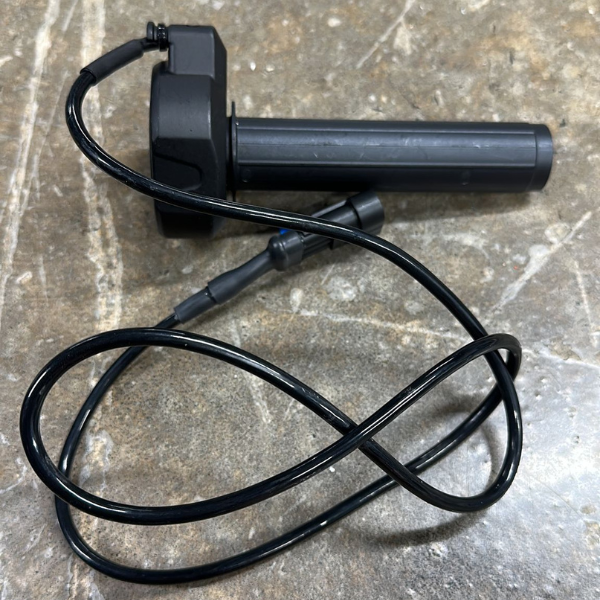

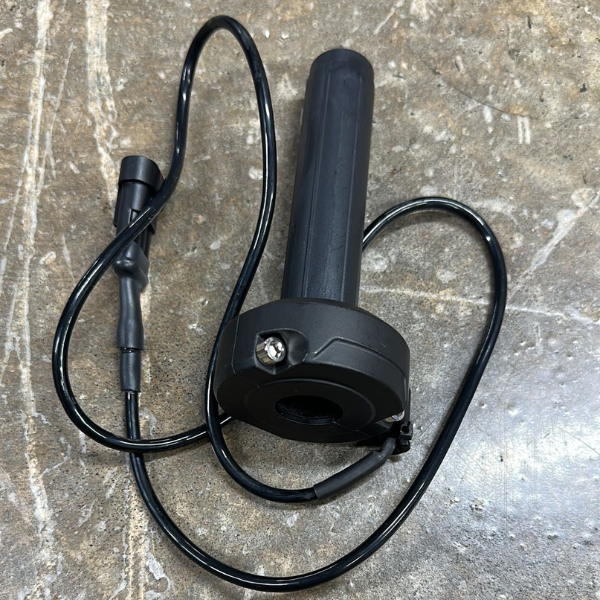

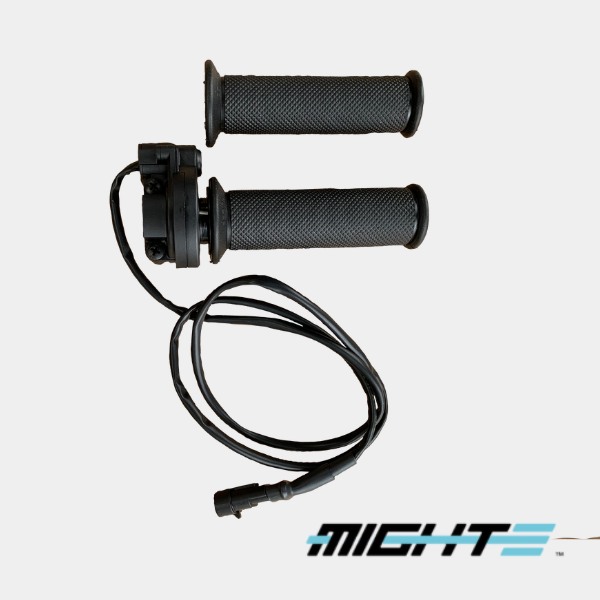

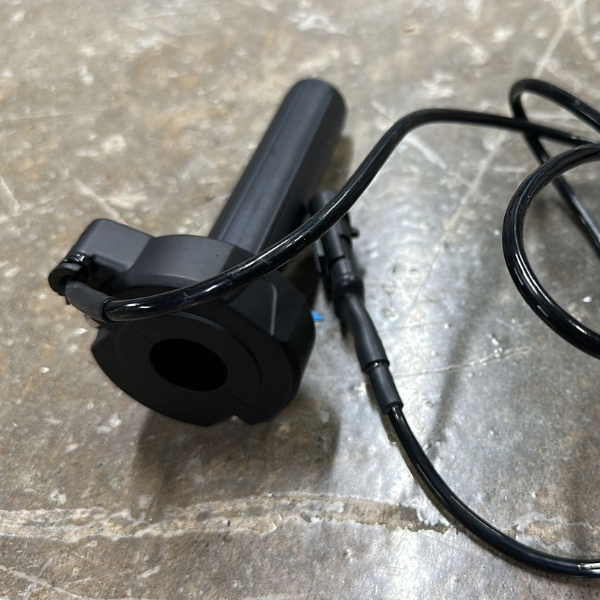

This compact and light-weight twist-grip throttle by Domino S.p.A. features a 5k Ohm IP-54 rated potentiometer, built-in microswitch. The microswitch is a nice added safety feature and can also be used to switch on regenerative braking while decelerating.
Potentiometer Characteristics:
– 5k Ohm ± 10%
– Nominal Voltage: 12 VDC
– Max Operating Voltage: 40 VDC
– Power Rating: 0,25 W
– Operating Temperature: -20°/+85°
– Protection Degree: IP 54
– 500,000 Cycles
– Linearity: ± 2%
Microswitch Characteristics:
– Nominal Voltage: 2 A / 24 V
– Lifetime with resistive load of 2 W at 24 V: 500,000 Cycles
– Operating Temperature: -20°/+85°
Complete Accelerator Control Characteristics:
– Operating Temperature: -20°/+60°
– Protection Degree: IP 30
– Operation: 300,000 Cycles
*Please specify if you would like a connector fitted*
