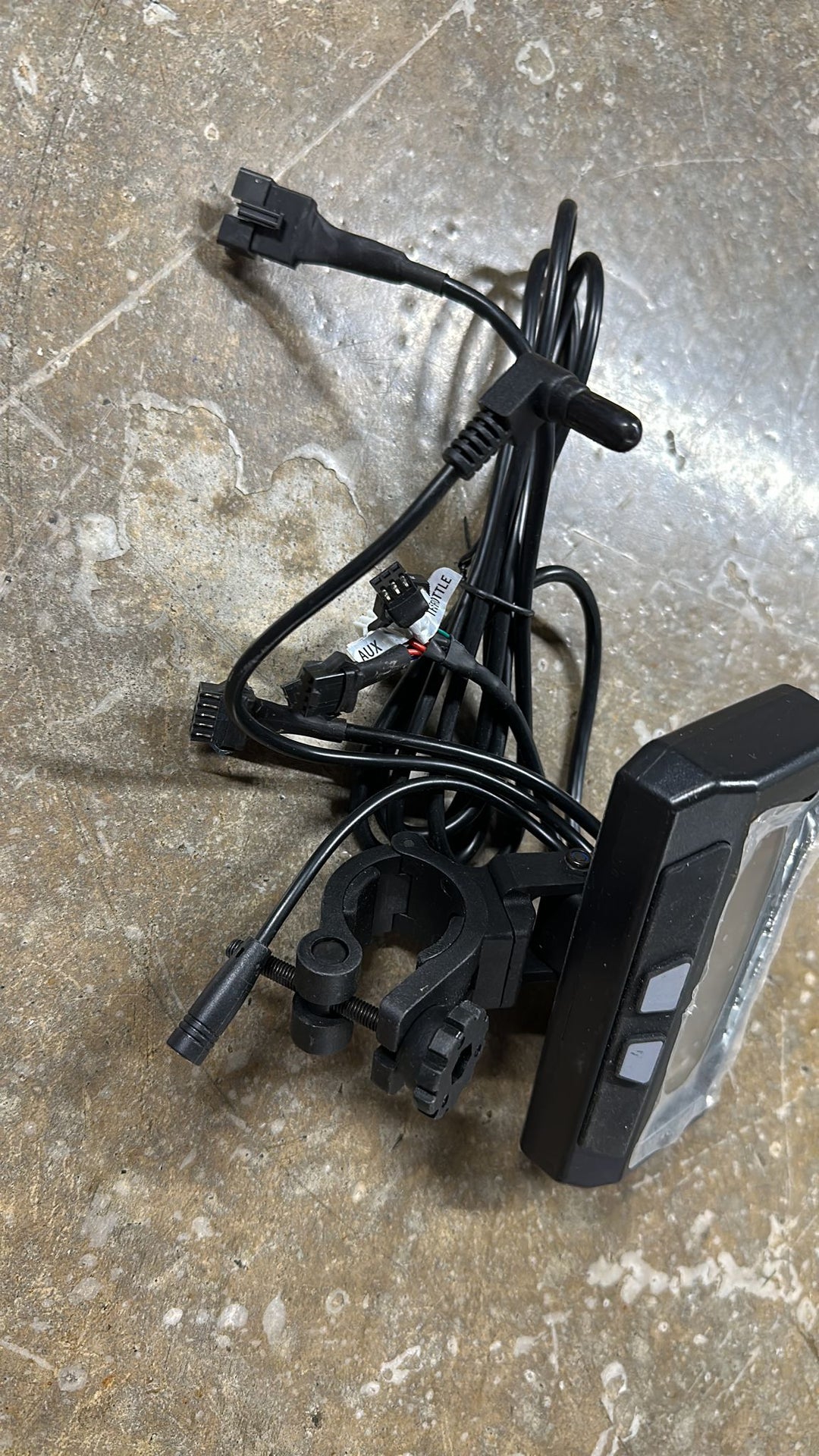

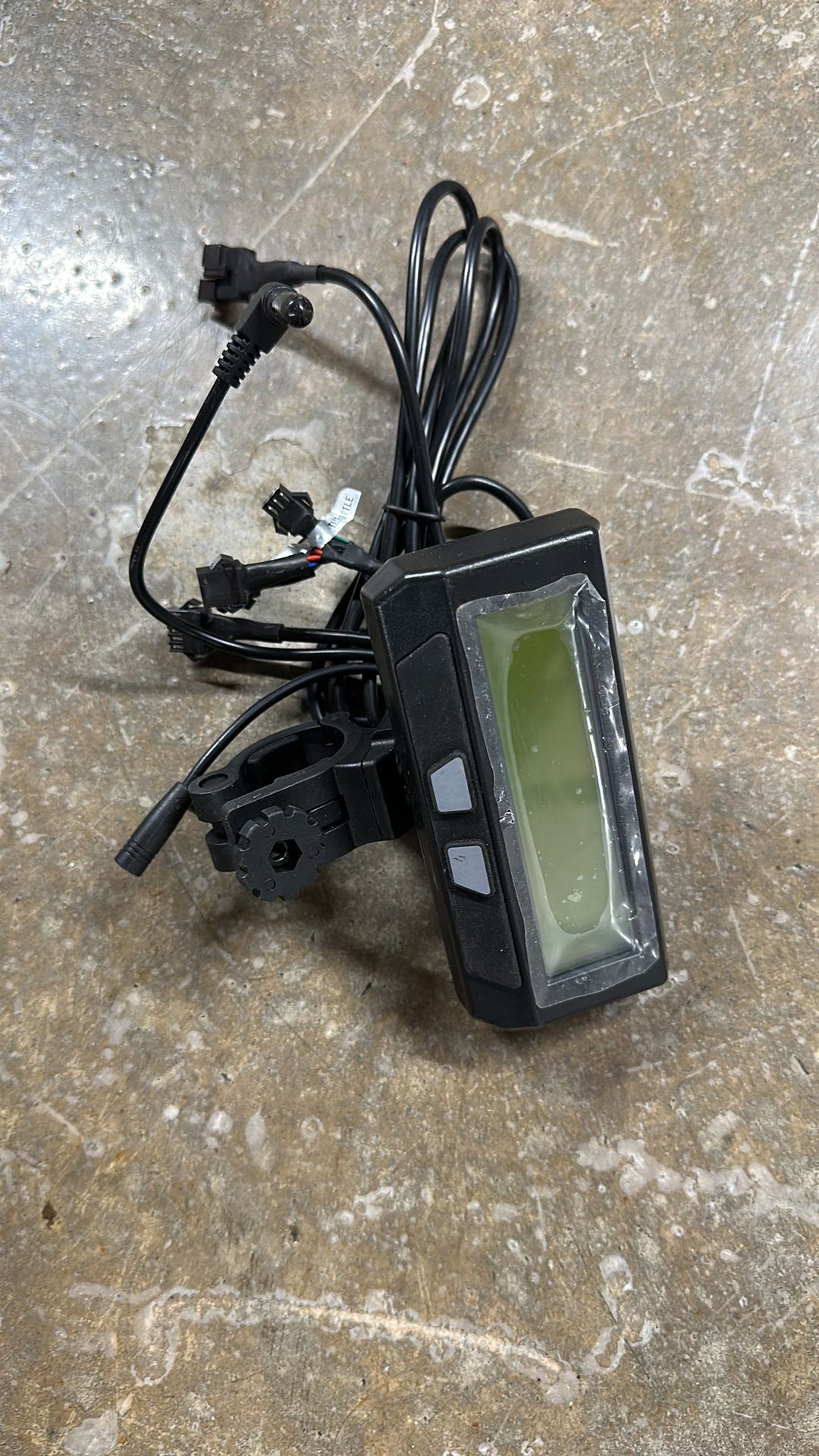

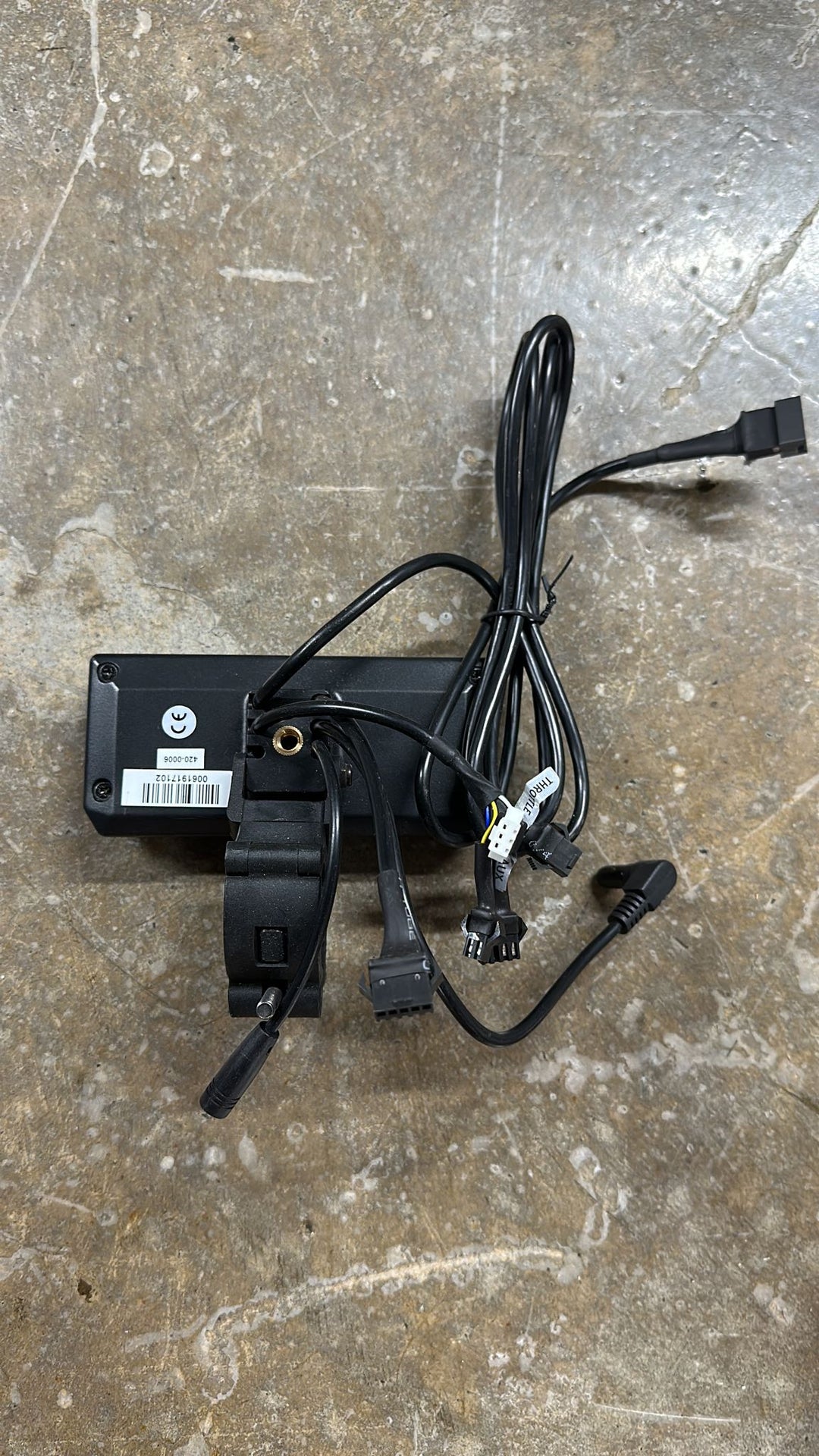

Cycle Analyst V3 - MightE
Cycle Analyst V3 - MightE

Cycle Analyst V3

Regular price$188.00
/
Shipping calculated at checkout.
  • Low stock - 5 items left
  • Inventory on the way

There are many advantages to this arrangement. In the traditional setup, any features that you wanted on the ebike, be it cruise control, torque sensing pedalec modes, temperature rollback etc. had to be supported by your particular motor controller. An OEM ebike company can design a custom controller that works with a specific set of input sensors, but DIY projects don’t have this luxury. With the V3 Cycle Analyst, you have access to all these advanced sensor and control schemes no matter what model motor controller powers your system.

Here are some of the more popular features you can include by using the V3 CA as your central ebike/EV console:



Thermal Rollback: A temperatures sensor input allows the V3 Cycle Analyst to scale back power as a motor heats up and prevent overheating damage.

PAS Sensor: The V3 Cycle Analyst can take the pedal pulse inputs of almost any ebike pedal rotation sensor to display your pedal cadence. It can use this to provide automatic power whenever you pedal (PAS mode) .

Torque Sensor: There is an analog input to sense a pedal torque sensor (such as the THUN bottom bracket), display your human power input, and give proportional no-throttle pedalec control.

Ebrakes: A digital input for ebrake sensors to plug in directly to the CA3, without needing to run another set of cables all the way down the bike to the controller.

Throttle Input Mapping: The CA3 can map your input throttle range to an output range suitable for the controller in order to eliminate dead-band zones at the beginning and end of the throttle motion.

Throttle Modes: Setup your throttle in Pass-Thru mode for conventional voltage control, or have your throttle directly regulate the battery current or motor power instead.


Throttle Ramps: Reduce the sensitivity and off-the-line kick of high power systems by setting ramp limits on the CA’s output throttle signal.

On the fly Limit Adjustments: Use a potentiometer or multi-position switch to instantly adjust any of your current/power/speed or pedal assist limits.

Mode Presets: Configure up to three distinct power mode presets each with their own limit settings and PAS/Throttle behaviors, and then easily switch between them with a double button press.

Battery SOC and LVC: Accurate State Of Charge (SOC) estimator based on your cell chemistry and voltage. Configure up to two batteries each with their own details and Low Voltage Cutoffs.






Because we ship worldwide, shipping times and costs can vary, we will contact you if we have any questions in regards to completing your Shipment.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Control Perfected

Unlock the full potential of your e-bike with the Cycle Analyst v3 Motor Controller, an epitome of precision and performance.

Superior Tech & Design

Engineered with cutting-edge technology, this controller allows for seamless motor operation, featuring real-time diagnostic tools and sophisticated performance data. A user-friendly interface makes for easy adjustments and fine-tuning.

Ride Better, Ride Smarter

By integrating the Cycle Analyst v3 Motor Controller, you can effectively monitor and control your ride dynamics.
Optimize for maximum efficiency, speed, or torque - the choice is yours.

Intuitive and User-Friendly

Designed for easy installation, the Cycle Analyst v3 also offers a backlit display for clear visibility under all riding
conditions. Advanced functionality combined with user-friendly operations - it's the smart rider's choice.
